¢Ã Handling over-height cargos on flat rack container in yard.

¢Ã It needs wire or gear to lift up the container because cargo is taller than container.

¢Ã Handling over-height cargo on super rack container in yard.

¢Ã It does not need any gear to lift up the cont-ainer because container is taller than cargo.

Flat rack   Super Rack

¢Ã It takes 30minutes to lift up   ¢Ã It takes 5 minutes to lift up
Flat Rack   Super Rack

¢Ã It needs man power to hook-up the wire.   ¢Ã A reach stacker can pit it up directly and
   it can be moved without any swing
   (less cargo damage than Flat Rack)



¢Ã Handling over-height cargos on flat rack container at terminal.

¢Ã It needs wire or gear to lift up the container because cargo is taller than container.

¢Ã Handling over-height cargo on super rack container at terminal.

¢Ã It does not need any gear to lift up the cont-ainer because container is taller than cargo.


Flat Rack Super Rack

¢Ã It needs extra working and delays working time
¢Ã It takes 30min to load
  ¢Ã It does not need any extra working.
¢Ã It takes 5 min. Qnly to load.

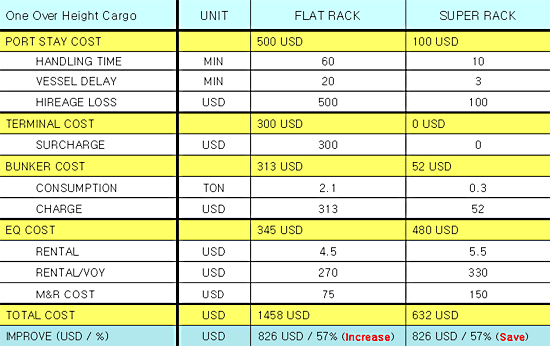

  - It can save 40 ~ 45% operation cost.

Based on 5,000teu vessel in long range service.

HJS
V 3.4
HMM
V 3.4
V 4.0 - highcube
CMA.CGM
V 4.0
UASC
V 3.4
V 4.0 - highcube
Rickmers
V 4.0 - highcube
Sarjak
V 4.0 - highcube
STX Pan Ocean
